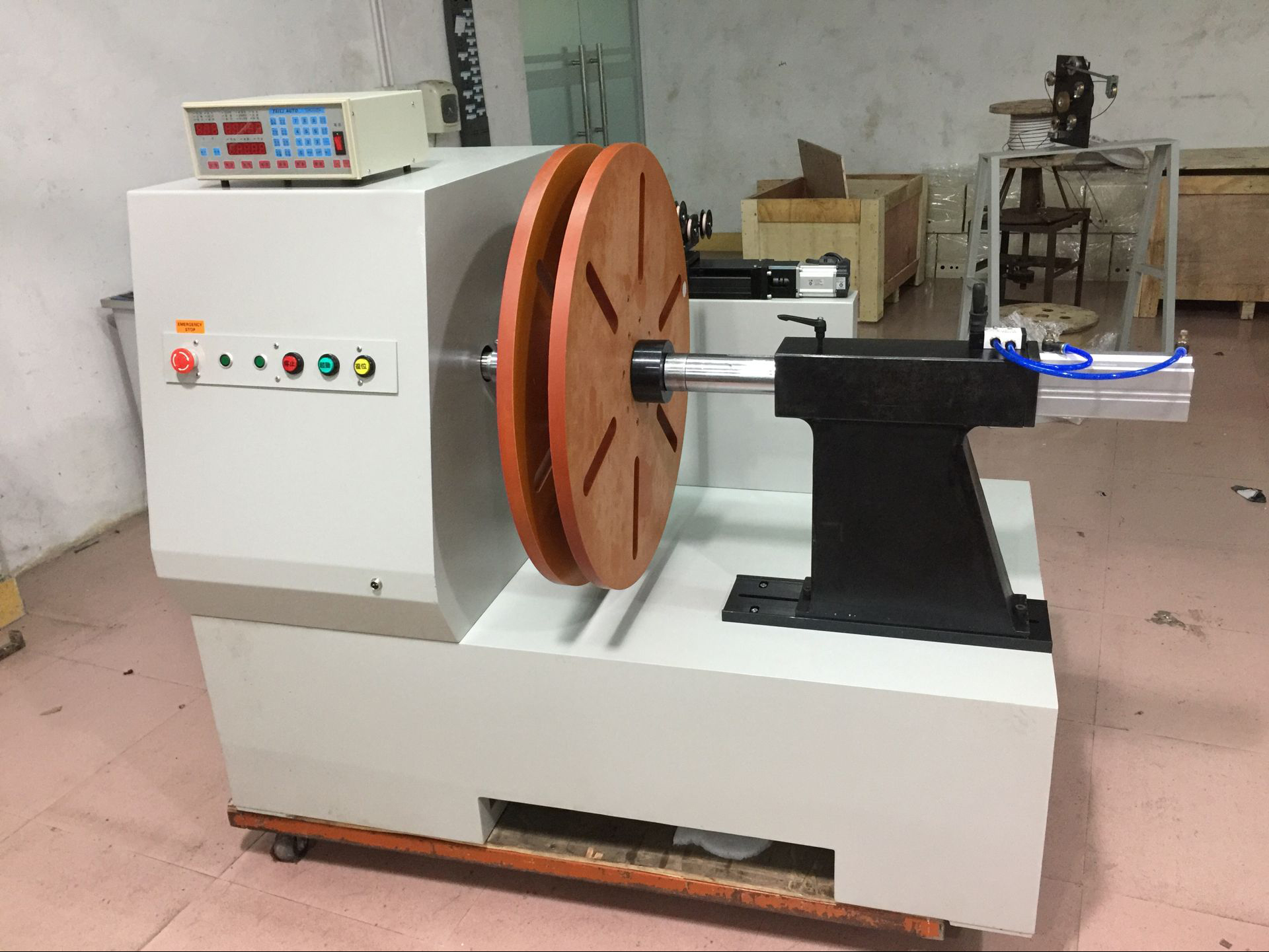

LD-F100CXLB-1

Customerized Special Design

Application:

Mainly for all kinds of flat wire coil winding (transformers, welding machines)

The main function:

The machine adopts 0.75-1.5KW turbo decelerated motor, to achieve large torque winding.

The special main spindle design and hardening treatment, and high strength pneumatic tailstock, can withstand the winding with a large thick line or flat-wire.

The machine can be changed to use double servo motor to achieve automatic winding and spreading.

Non-standard machine can be customized according to customer's requirement.

Technical Parameters:

Power supply:      AC220V,50Hz

Motor:        AC 0.75-1.5 KW

Air supply:  4-7KG/CM2

Max speed: 800RPM

Spreading width:   210mm(Customizable length)

Winding width:      300mm

Dimension: 1300X650X1150mm

Net weight:  145KG
