LD-A702C Semi-circular Transformer Winding Machine

transformer
windingmachine
Product description: Semicircle or shaped product coil Such as: semicircular transformer coil, clamp meter coil, etc.
INQUIRY

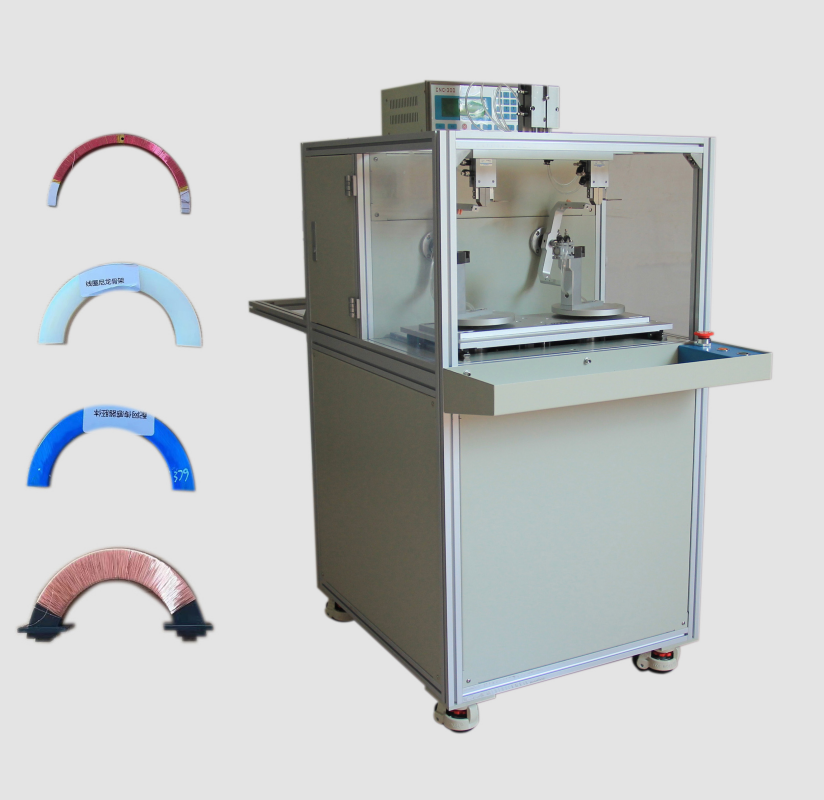

LD-A702C Semi-circular transformer Winding Machine

Customerized Special Design

Scope of application:

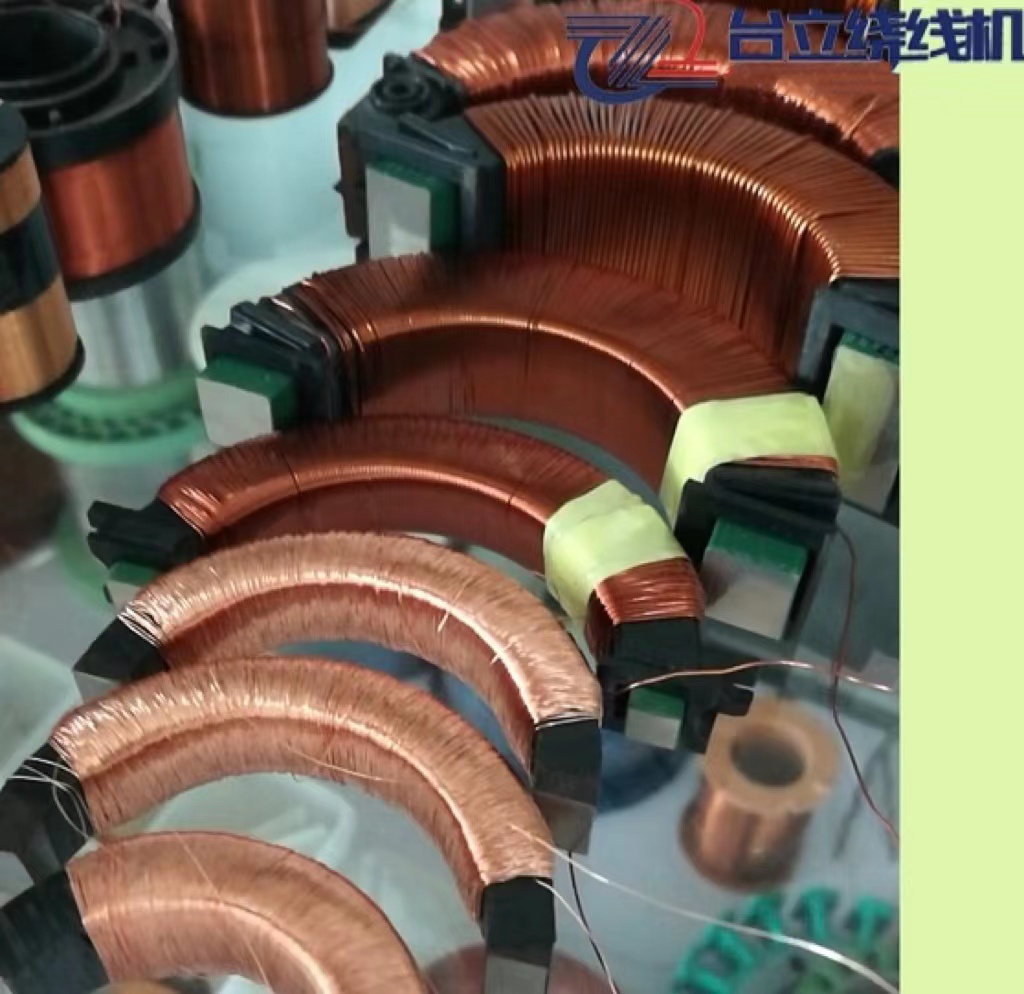

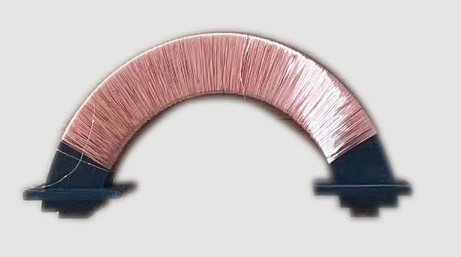

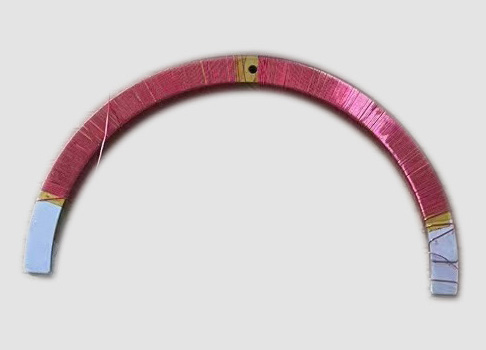

Semi-circular or special-shaped product coils, such as: semi-circular transformer coils, clamp meter coils, etc.

Product Description:
This machine does not need manual disassembly and tightening, pneumatic automatic clamping, automatic clamping and trimming, no manual assistance, high speed, neat wiring, and high production efficiency

Technical Parameter:

Model (Model No): LD-A702C
Applicable wire size (Wire size) MM : 0.04-0.6mm (the tensioner needs to be replaced according to the wire size)
Maximum speed (Speed) : RPM 3000RPM
Power supply (Power supply): AC220V 50HZ
Tension supply: Permanent magnet tensioner
Machine weight (Weight) KG: 100kgs

Machine Dimensions (Dimensions L x W x H) MM: 1350-600-1400mm
