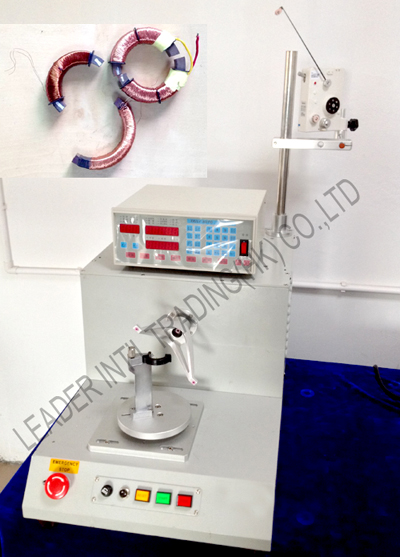

Model No.: LD-A701S(Customerized Special Design)

Application:

Semicircle or coil-shaped products, such as: semicircular transformer coils, semi-circular heating wire coil.

The main function:

Winding with high speed, spreading tidy, easy loading and unloading.

Technical Parameters:

Dimensions(mm): 700*400*400

Net Weight:      40KG

Power:           AC220V,50Hz

Max speed:       3000RPM

Wire range:       0.04-1.0mm(According to the wire size to replace the tensioner)

Tensioner:        Magnetic tensioner
