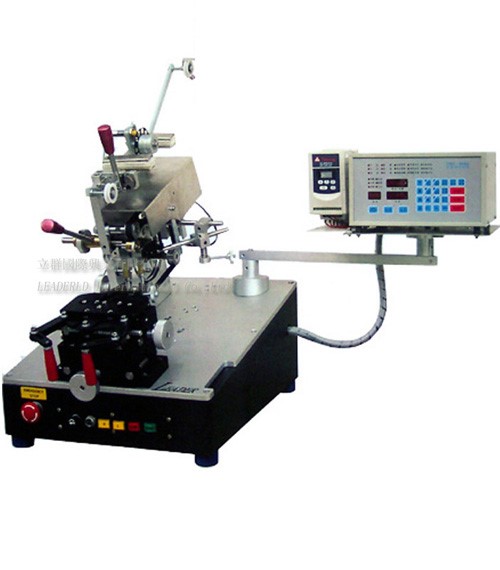

LD-F400

线径Wire Size    :                                     0.2-0.7mm

储线槽内径Magazine(shuttle)Diameter:                     4＂

储线槽宽度Magazine(shuttle)Width, Slider width not included:  2.4-9.5mm

最小完成内径Min. Finished Core I.D.:                     3mm

适用外径Finished Core O.D.:                             10-40mm

铁芯最大高度Max. Finished Core Height:                  15mm

最高转速Max. Speed：                                  1000rpm

排线马达Spreading Motor：                             DC,5V Stepping Motor

绕线马达Winding Motor:                                AC,1/2hp

净重Net Weight:                                       50kg

尺寸Dimensions L*W*H:                                600*650*650mm
